Lost wax Carbon Steel investment casting are accomplished on a foundation of reliability, and PTJ has the equipment to offer a competitive edge.
|
Cast steel refers to the steel used for the manufacture of steel castings. Cast steel should be used when the strength of the casting is relatively high and the use of cast iron cannot meet the requirements. However, the liquidity of cast steel is not as good as cast iron, so the thickness of the casting structure should not be too small, and the shape should not be too complicated. When the silicon content is controlled at the upper limit, the fluidity of molten steel can be improved. Cast steel can be divided into general engineering cast steel, welded structure cast steel, stainless steel cast steel, and heat-resistant steel cast steel according to its variety and purpose. PTJ produces steel cast components through the investment cast process up to 100 lbs in weight. Parts are produced to comply with various certifications and requirements set by the customer and/or industry recognized worldwide standards, such as ASTM. Our facility is equipped with two spectrometers to accurately analyze alloys and ensure material chemistry. Carbon Steel Investment Casting at PTJ means a company-wide commitment to maintaining a predictable component and castings supply at any production volume or level of precision. Our commitment to timely delivery, consistent quality and minimized cost is backed by our extensive equipment line. Request your quote today! |
 |
|
|
 |
|
 |
|
 |
Contact our Carbon Steel investment casting services enginers today to discuss the specifics of your complex parts. |
We are proud to produce complex investment cast parts with superior surface finishes in the industries fastest lead-times for the following markets:
- ▶ Aerospace
- ▶ Defense
- ▶ Medical
- ▶ Electronics
- ▶ Automotive
- ▶ Oil and Gas
- ▶ Agriculture
- ▶ Commercial
 |
 |
 |
 |
 |
 |
|
High Accuracy |
Quick Quote& Service |
Fast Delivery |
Custom Finishes |
Precision Machines |
Addition Services |
|
|
Carbon Steel Investment Casting Process Steps at China Casting Company |
The following steps are what we follow to produce parts with complex geometries and intricate details.
-
▶ Create wax pattern: A pattern that replicates the finished part geometry is made using one of two primary methods:
Build a wax injection die
3D print pattern
If a wax injection die will be used, the first step involves designing and building a metal die from Aluminum. This die creates a wax replica of the desired part by injecting melted wax under high pressure into the cavity. The die can be made as a simple one cavity manual tool or a complex multi-cavity automatic tool depending on volume requirements.
If a 3D printed pattern will be used, a CAD model which contains the part geometry is sent to a printer and the part is printed
- ▶ Wax Assembly: Next, the wax patterns are assembled onto runners and into a finished tree which is ready to be dipped.
-
▶ Slurry Coating: The assembly is then dipped into a high-grade ceramic slurry to build a ceramic shell around the wax tree.
- ▶ Stuccoing: After the slurry coating is done, particles of sand are dropped onto the surface of the wet tree assembly. This helps to thicken and strengthen the layer of coating on the wax assembly surface.
- ▶ Repeat Steps 5 and 6: Repeat steps 5 and 6 until the assembly achieves the desired shell thickness. The assembly is then allowed to set and dry.
- ▶ Dewaxing: The wax inside the newly built shell is now removed. Dewaxing is done using a steam-dewaxing autoclave or flash fire furnace.
-
▶ Casting: Now the desired molten metal is poured into the pre-heated mold cavity.
- ▶ Cooling: The mold then sits to allow the molten metal to cool and solidify which then becomes the final casting. (complete equipment list)
- ▶ Shell Removal: The shell material is then removed through processes hammer knockout, vibration, and steel grit blasting.
- ▶ Cut Off: The finished parts are then cut free from the gating and runner system.
- ▶ Finishing: Various finishing techniques are then employed including grinding, sand blasting and coating to achieve the final surface needed.
- ▶ Testing: Once the finishing operations are done, the parts are inspected for surface and sub-surface defects. Visual and fluorescent penetrant inspection is done for surfaces and X-ray is employed for sub-surface defect identification.
|
|

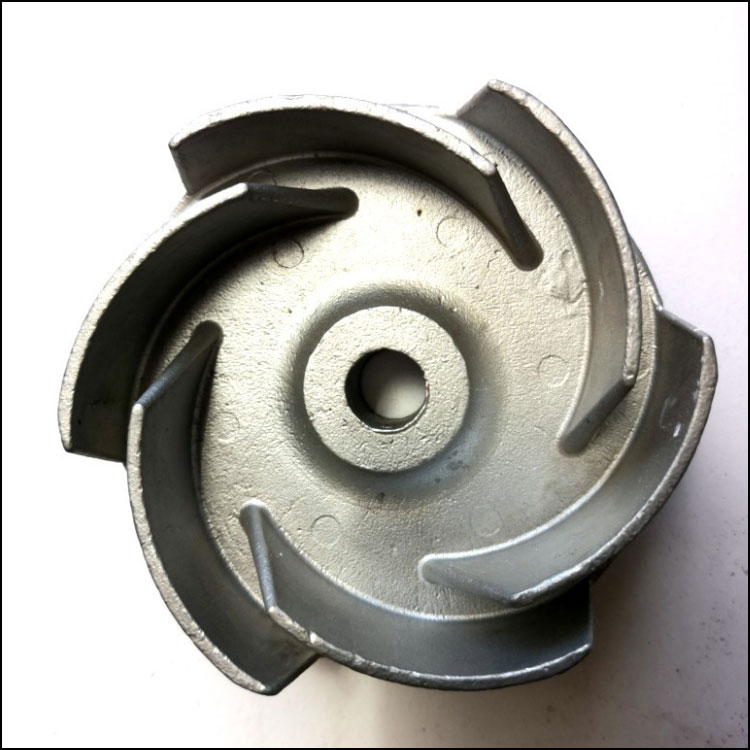

Our Carbon Steel Investment Casting Facility And Castings Case |
 |
 |
 |
 |
|
Automatic shell making assembly line |
Automatic wax injection machine |
Brinell Rockwell hardness tester |
Metallographic analyzer |
 |
 |
 |
 |
|
Casting workshop |
Medium temperature wax workshop |
Steam dewaxing kettle |
Tensile testing machine |
View more machining technology on our Gallery Page
PTJ has been serving customers all over the world since 2007. We keep sharping our skills and improve our equipment to make sure our customers are satisfied. We have so many loyal customers who have worked with us for more than 10 Years. Let’s view the other machining technology and learn more calture about PTJ Hardware.
 |
|
 |
|
 |
